All Vision models
VISION · 3 VARIANTS

Vision 570

Mid-size all-in-one with local and remote I/O.

  • Up to 1.024 I/O via expansion
  • Advanced HMI with images and alarms
Your part number · V570-57-T20B-J
V570Vision 570 · 5,7″ colour touch
57-T20B-J5,7″ touch, flat J front

1Choose model and front

Vision 570 · touchJ = flat front
Vision 560 · touch + keypad
How to read the part number
V570 / V560
Vision 570 (touch) / Vision 560 (touch + physical keypad).
57
5,7″ display.
-J
Completely flat J front.
Product sheet V570-57-T20B-J (PDF)Download VisiLogic free

Unsure about the type? Get personal advice on +45 70 22 00 66.

Technical specifications

FamilyVision
Display5,7″ colour touch, 320×240
I/OSnap-in and expansion I/O
Selected variantV570-57-T20B-J – 5,7″ touch, flat J front
CPUVision CPU

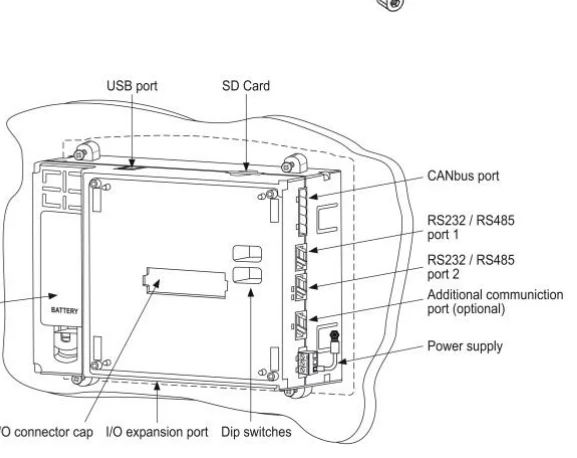

CommunicationRS232/485, CANbus, Ethernet (optional), Modbus RTU, Modbus TCP
Power supply12/24 VDC
SoftwareVisiLogic (free)
Product sheet for this typeV570-57-T20B User Guide

Documents for Vision 570

All types in Vision 570 (3)
5,7″ touch, flat J front
5,7″ touch, standard front
5,7″ touch + keypad
MATCHING ACCESSORIES

Expand Vision 570

ACCESSORIES · 8 VARIANTSUnitronics Snap-in I/O modules (V200-18)

Snap-in I/O modules (V200-18)

I/O modules that snap directly onto the back of the large Vision panels.

Fits: Snaps onto the back of Vision 570, 700, 1040 and 1210

  • Digital, relay, transistor and analogue
  • Vision-bus
V200-18-E1BV200-18-E2BV200-18-E3XB+5
See the model
ACCESSORIES · 27 VARIANTSUnitronics I/O modules (EX/IO)

I/O modules (EX/IO)

DIN-rail I/O modules for Vision and M91: digital, analogue, temperature and load cells.

Fits: Vision and M91 via expansion adapter (EX-A2X locally, EX-RC1 via CANbus)

  • Up to 8 modules per adapter
  • Expansion port, CANbus
EX90-DI8-RO8EX-D16A3-RO8EX-D16A3-TO16+24
See the model
ACCESSORIES · 3 VARIANTSUnitronics Expansion adapters (EX)

Expansion adapters (EX)

Adapter between Vision/M91 and the I/O modules – locally or via CANbus – plus high-speed I/O.

Fits: Vision and M91 (EX-A2X locally, EX-RC1 via CANbus)

  • Up to 8 modules per adapter
  • Expansion port, CANbus
EX-A2XEX-RC1EXF-RC15
See the model
ACCESSORIES · 10 VARIANTSUnitronics Expansion cables (EXL)

Expansion cables (EXL)

Ready-made expansion cables from 0,5 to 20 m between adapter and I/O modules.

Fits: Between expansion adapter and I/O modules

  • Cables 0,5–20 m
EXL-CAB050EXL-CAB100EXL-CAB200+7
See the model
ACCESSORIES · 11 VARIANTSUnitronics Communication modules (V100/V200)

Communication modules (V100/V200)

Extra Ethernet, RS232/485, CANbus and Profibus for Vision and Samba.

Fits: V100-17: Vision 130/350/430 and Samba (PB1 Vision 130/350 only) · V200-19: Vision 570/700/1040/1210

  • Communication
  • Ethernet, RS232/485, CANbus
V100-17-ET2V100-17-RS4V100-17-RS4X+8
See the model
ACCESSORIES · 34 VARIANTSUnitronics Spare fronts (Vision)

Spare fronts (Vision)

Spare fronts for Vision controllers – with or without Unitronics logo.

Fits: Vision 120–1210 (incl. previous V230/V280/V290)

  • Spare part
F-V1040NBF-V1040UBF-V120R1UD+31
See the model
ACCESSORIES · 6 VARIANTSUnitronics Programming and serial cables

Programming and serial cables

Cables and converters for programming and serial communication with Vision, Jazz and M91.

Fits: Vision, Jazz and M91 with serial port

  • Communication
  • RS232, RS485
MJ10-22-CS35MJ10-22-CS28MJ10-22-CS32+3
See the model
