All Vision models
VISION · 22 VARIANTS

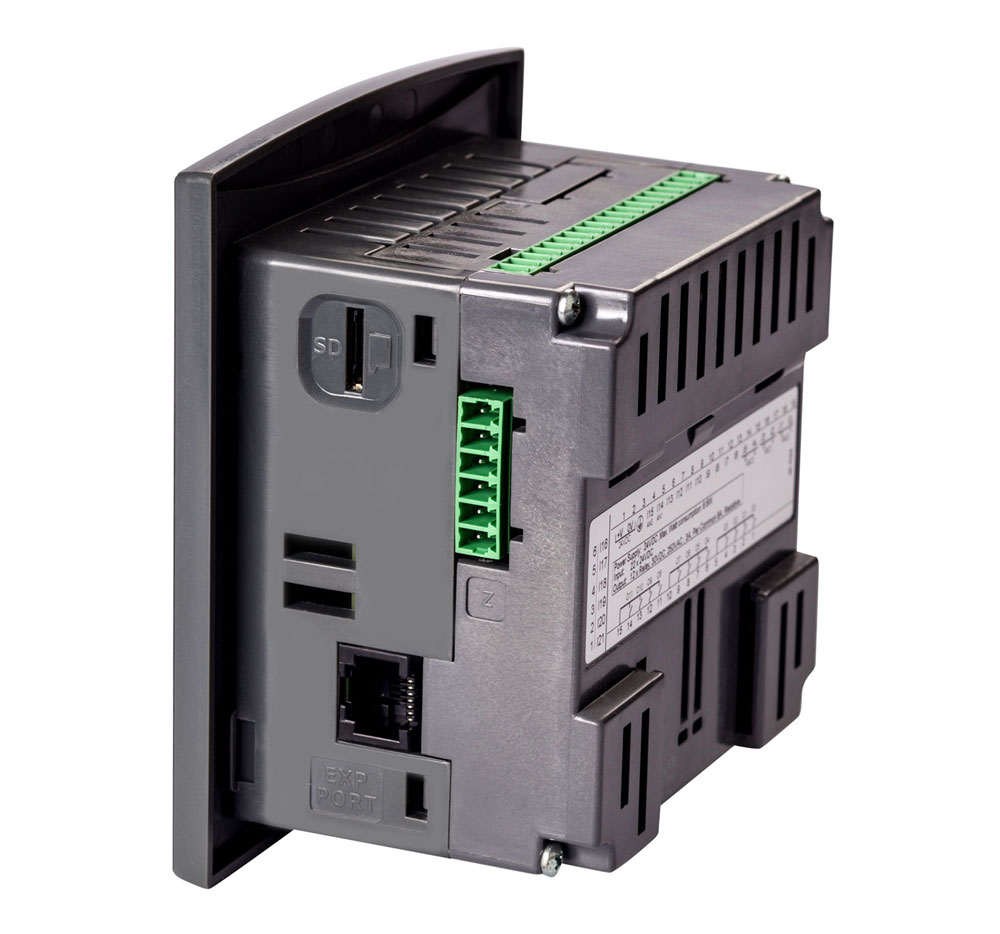

Vision 350

Colour touch in a small format with snap-in I/O.

  • Colour touch with function keys
  • Snap-in I/O
  • Data logging to micro-SD
Your part number · V350-J-B1
V350Vision 350
JJ front · completely flat
B1No built-in I/O – expandable via expansion port or CANbus

1Choose front

2Choose built-in I/O

Without built-in I/OExpandable via expansion port or CANbus
Digital with transistor outputsT = transistor
Digital with relay outputsR = relay · TR = relay + transistor · RH = relay + high-speed
With analogue / temperatureA = analogue/temperature
How to read the part number
V + number
Vision model: 130 = 2,4″ monochrome with keypad, 350 = 3,5″ colour touch, 430 = 4,3″ colour touch.
J / 33 / 35
J = flat front. 33 (V130) / 35 (V350) = standard front. Same electronics.
S / JS
Extended temperature range (-30 to 60 °C) with standard front (S) or flat front (JS).
R / T / TR
Relay / transistor / relay + transistor.
RH
Relay + high-speed inputs (V430).
A
Analogue inputs, PT100/thermocouple and optional analogue outputs.
B1
No built-in I/O.
The number
Total number of built-in I/O.
Product sheet V350-J-B1 (PDF)Download VisiLogic free

Unsure about the type? Get personal advice on +45 70 22 00 66.

Technical specifications

FamilyVision
Display3,5″ colour touch
I/OSnap-in I/O depending on variant
Selected variantV350-J-B1 – No built-in I/O – expandable via expansion port or CANbus
CPUVision CPU
CommunicationRS232/485, Ethernet (optional), CANbus (optional), Modbus RTU, Modbus TCP
Power supply24 VDC
SoftwareVisiLogic (free)
Product sheet for this typeV350-35-B1/V350-J-B1 User Guide

Documents for Vision 350

All types in Vision 350 (22)
No built-in I/O – expandable via expansion port or CANbus
12 DI (incl. 2 analogue, 3 HSC), 12 transistor · Transistor
22 DI (incl. 2 analogue, 2 HSC), 16 transistor · Transistor
12 DI (incl. 2 analogue, 2 PT100/TC, 1 HSC), 10 transistor, 2 AO · Transistor
22 DI (incl. 2 analogue, 3 HSC), 12 relay · Relay
12 DI (incl. 2 analogue, 2 PT100/TC, 1 HSC), 8 relay, 2 AO · Relay
22 DI (incl. 2 analogue, 3 HSC), 8 relay, 4 HS transistor (npn) · Relay + transistor
12 DI (incl. 2 analogue, 2 PT100/TC, 1 HSC), 4 relay, 4 HS transistor, 2 AO · Relay + transistor
12 DI (incl. 2 analogue, 3 HSC), 6 relay, 2 HS transistor · Relay + transistor
8 DI (incl. 2 analogue, 1 HSC), 4 AI (current), 6 relay, 2 HS transistor · Relay + transistor
JS front (-30 to 60 °C) · 8 DI, 4 AI, 10 transistor, 2 AO · Transistor
Standard front · no built-in I/O
Standard front · 12 DI (incl. 2 analogue), 12 transistor · Transistor
Standard front · 22 DI (incl. 2 analogue), 16 transistor · Transistor
Standard front · 12 DI, 2 PT100/TC, 10 transistor, 2 AO · Transistor
Standard front · 22 DI (incl. 2 analogue), 12 relay · Relay
Standard front · 12 DI, 2 PT100/TC, 8 relay, 2 AO · Relay
Standard front · 6 DI, 6 AI, 6 relay, 2 transistor · Relay + transistor
Standard front · 10 DI, 2 AI, 6 relay, 2 transistor · Relay + transistor
Standard front · 22 DI, 2 AI, 8 relay, 4 transistor · Relay + transistor
Standard front · 12 DI, 2 PT100/TC, 6 relay, 2 transistor, 2 AO · Relay + transistor
S front (-30 to 60 °C) · 12 DI, 2 PT100/TC, 10 transistor, 2 AO · Transistor
