All Vision models
VISION · 1 VARIANTS

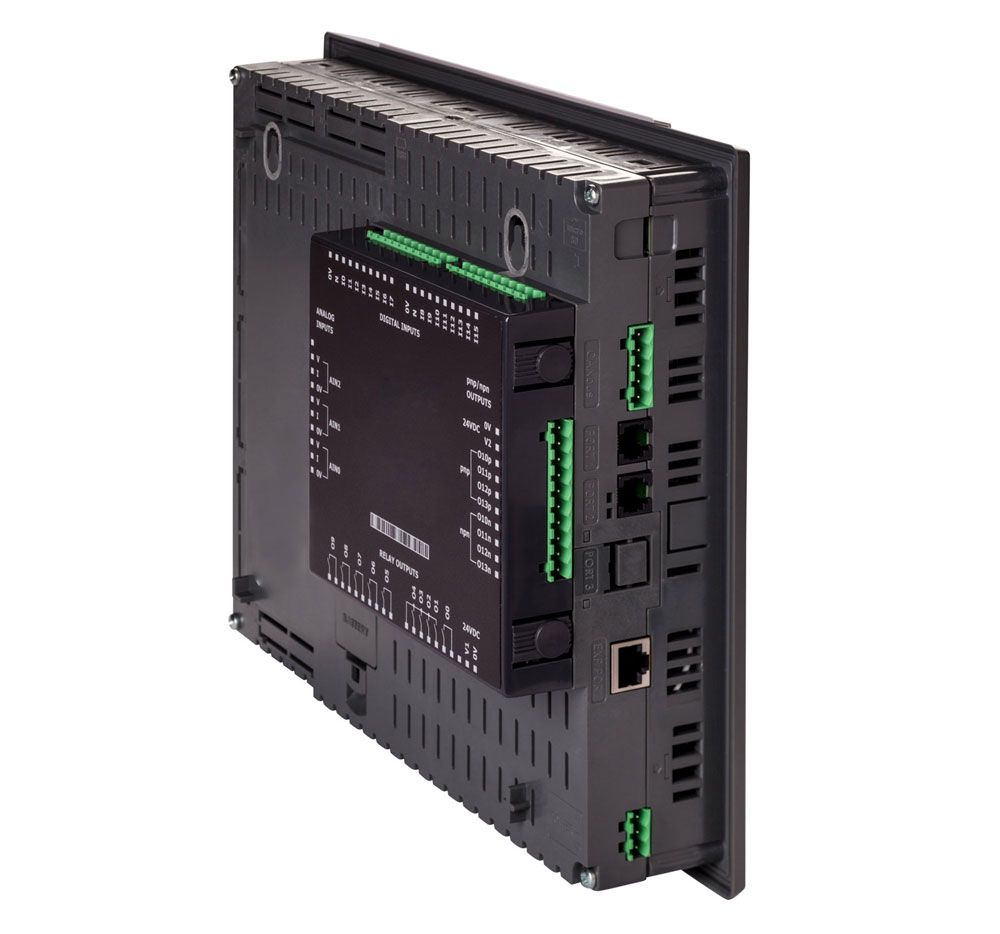

Vision 1040

10,4″ operator panel with integrated PLC.

  • Large display for process overview
  • Expansion I/O
Your part number · V1040-T20B
V1040-T20B10,4″ touch

1Part number

Vision 1040
Product sheet V1040-T20B (PDF)Download VisiLogic free

Unsure about the type? Get personal advice on +45 70 22 00 66.

Technical specifications

FamilyVision
Display10,4″ colour touch
I/OExpansion I/O
Selected variantV1040-T20B – 10,4″ touch
CPUVision CPU

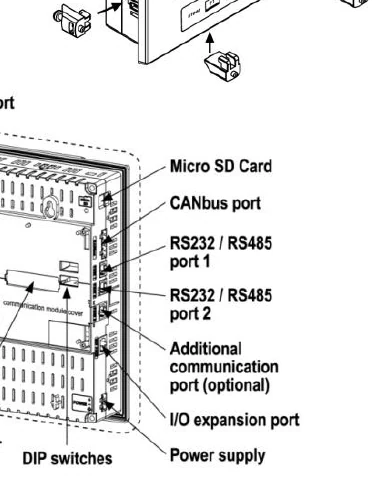

CommunicationRS232/485, Ethernet (optional), CANbus (optional), Modbus RTU, Modbus TCP
Power supply24 VDC
SoftwareVisiLogic (free)
Product sheet for this typeV1040-T20B User Guide

Documents for Vision 1040

All types in Vision 1040 (1)
10,4″ touch
MATCHING ACCESSORIES

Expand Vision 1040

ACCESSORIES · 8 VARIANTSUnitronics Snap-in I/O modules (V200-18)

Snap-in I/O modules (V200-18)

I/O modules that snap directly onto the back of the large Vision panels.

Fits: Snaps onto the back of Vision 570, 700, 1040 and 1210

  • Digital, relay, transistor and analogue
  • Vision-bus
V200-18-E1BV200-18-E2BV200-18-E3XB+5
See the model
ACCESSORIES · 27 VARIANTSUnitronics I/O modules (EX/IO)

I/O modules (EX/IO)

DIN-rail I/O modules for Vision and M91: digital, analogue, temperature and load cells.

Fits: Vision and M91 via expansion adapter (EX-A2X locally, EX-RC1 via CANbus)

  • Up to 8 modules per adapter
  • Expansion port, CANbus
EX90-DI8-RO8EX-D16A3-RO8EX-D16A3-TO16+24
See the model
ACCESSORIES · 3 VARIANTSUnitronics Expansion adapters (EX)

Expansion adapters (EX)

Adapter between Vision/M91 and the I/O modules – locally or via CANbus – plus high-speed I/O.

Fits: Vision and M91 (EX-A2X locally, EX-RC1 via CANbus)

  • Up to 8 modules per adapter
  • Expansion port, CANbus
EX-A2XEX-RC1EXF-RC15
See the model
ACCESSORIES · 10 VARIANTSUnitronics Expansion cables (EXL)

Expansion cables (EXL)

Ready-made expansion cables from 0,5 to 20 m between adapter and I/O modules.

Fits: Between expansion adapter and I/O modules

  • Cables 0,5–20 m
EXL-CAB050EXL-CAB100EXL-CAB200+7
See the model
ACCESSORIES · 11 VARIANTSUnitronics Communication modules (V100/V200)

Communication modules (V100/V200)

Extra Ethernet, RS232/485, CANbus and Profibus for Vision and Samba.

Fits: V100-17: Vision 130/350/430 and Samba (PB1 Vision 130/350 only) · V200-19: Vision 570/700/1040/1210

  • Communication
  • Ethernet, RS232/485, CANbus
V100-17-ET2V100-17-RS4V100-17-RS4X+8
See the model
ACCESSORIES · 34 VARIANTSUnitronics Spare fronts (Vision)

Spare fronts (Vision)

Spare fronts for Vision controllers – with or without Unitronics logo.

Fits: Vision 120–1210 (incl. previous V230/V280/V290)

  • Spare part
F-V1040NBF-V1040UBF-V120R1UD+31
See the model
ACCESSORIES · 6 VARIANTSUnitronics Programming and serial cables

Programming and serial cables

Cables and converters for programming and serial communication with Vision, Jazz and M91.

Fits: Vision, Jazz and M91 with serial port

  • Communication
  • RS232, RS485
MJ10-22-CS35MJ10-22-CS28MJ10-22-CS32+3
See the model
