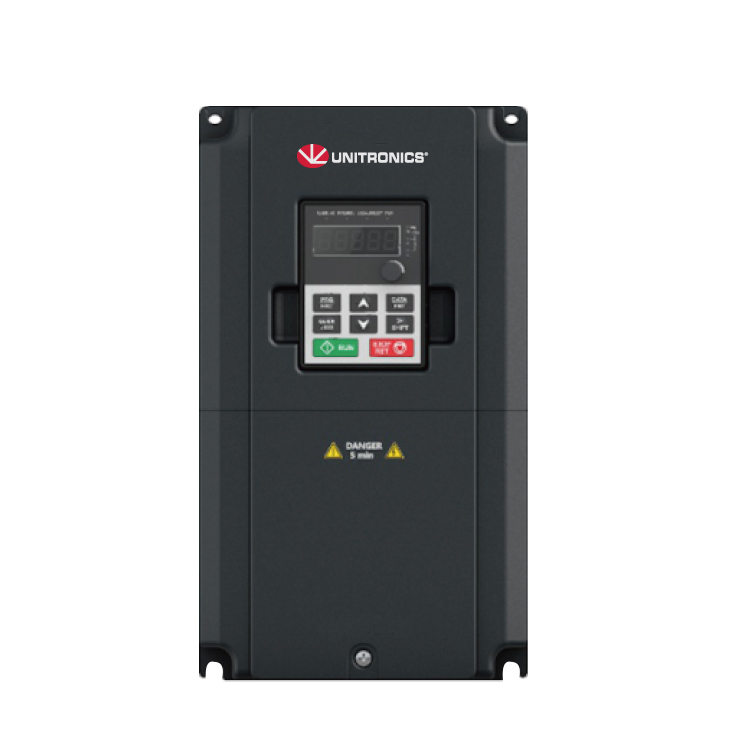

VFD · 36 VARIANTS

UMI frequency inverters

Compact VFDs with built-in setup in UniLogic and VisiLogic.

B1 series: 0,4–110 kW
Parameterisation directly from the PLC software
Modbus RTU (RS485) and Safe Torque Off (STO)
Built-in EMC filter and braking chopper (up to 37 kW)

Your part number · UMI-0004BE-B1

UMIUnitronics frequency inverter

00040,4 kW

BESingle-phase 230 V · EU version (CE)

B1B1 series: sensorless vector, torque and V/Hz control, Modbus RTU, STO

1Choose power supply and version

2Choose motor power

Motor power4 digits = power in 0,1 kW

How to read the part number

UMI: Unitronics frequency inverter (VFD).
4 digits: Power in 0,1 kW (0015 = 1,5 kW).
2 letters: Power supply + version. 1st letter: A = single-phase 115 V, B = single-phase 230 V, C = 3-phase 230 V, E = 3-phase 400/480 V. 2nd letter: E = EU version (CE), U = UL version for North America.
B1: B1 series: sensorless vector, torque and V/Hz control, Modbus RTU (RS485), STO.

Manual UMI-0004BE-B1 (PDF)Download UniLogic free Download VisiLogic free

Unsure about the type? Get personal advice on +45 70 22 00 66.

Technical specifications

Family	VFD
I/O	Power depending on variant
Selected variant	UMI-0004BE-B1 – 0,4 kW, single-phase 200–240 V
Communication	Modbus RTU
Power supply	Single-phase 200–240 V / 3-phase 380–480 V
Software	UniLogic / VisiLogic (free)
Manual for this type	UMI-B1 Operation Manual (EU)

Documents for UMI frequency inverters

Manual · UMI-B1 Operation Manual (EU)

All types in UMI frequency inverters (36)

	0,4 kW, single-phase 200–240 V
	0,75 kW, single-phase 200–240 V
	1,5 kW, single-phase 200–240 V
	2,2 kW, single-phase 200–240 V
	0,75 kW, 3-phase 380–480 V
	1,5 kW, 3-phase 380–480 V
	2,2 kW, 3-phase 380–480 V
	4 kW, 3-phase 380–480 V
	5,5 kW, 3-phase 380–480 V
	7,5 kW, 3-phase 380–480 V
	11 kW, 3-phase 380–480 V
	22 kW, 3-phase 380–480 V
	55 kW, 3-phase 380–480 V
	110 kW, 3-phase 380–480 V
	15 kW, 3-phase 380–480 V
	18,5 kW, 3-phase 380–480 V
	30 kW, 3-phase 380–480 V
	37 kW, 3-phase 380–480 V
	45 kW, 3-phase 380–480 V
	75 kW, 3-phase 380–480 V
	90 kW, 3-phase 380–480 V
	1,5 kW, single-phase 200–240 V, UL
	2,2 kW, single-phase 200–240 V, UL
	0,4 kW, 3-phase 200–240 V, UL
	0,75 kW, 3-phase 200–240 V, UL
	0,75 kW, 3-phase 380–480 V, UL
	1,5 kW, 3-phase 380–480 V, UL
	0,4 kW, single-phase 110–120 V, UL
	0,75 kW, single-phase 110–120 V, UL
	1,1 kW, single-phase 110–120 V, UL
	0,4 kW, single-phase 200–240 V, UL
	2,2 kW, 3-phase 380–480 V, UL
	0,4 kW, 3-phase 200–240 V
	0,75 kW, 3-phase 200–240 V
	1,5 kW, 3-phase 200–240 V
	2,2 kW, 3-phase 200–240 V
