All VFD models
VFD · 32 VARIANTS
EMC filters (VFD)
Input and output filters (C2 and C3) for UMI frequency inverters.
- C2 filters for stricter EMC requirements
- 1- and 3-phase
- Choose by the inverter’s power
Your part number · UMI-S0020
UMIAccessories for UMI frequency invertersS0020Input filter C2 · UMI-B11Choose inverter
2Choose filter
3Choose power supply
4Choose by the inverter’s power
EMC class C2
EMC class C3
How to read the part number
- UMI-S + number
- Serial number for accessories – the number has no code structure.
- C2 / C3
- EMC class according to EN 61800-3.
- Input / output

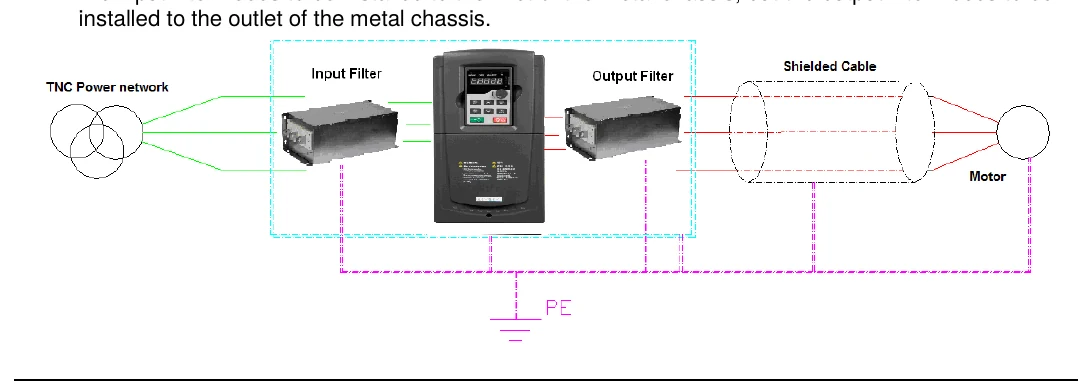

- The input filter is mounted between mains and inverter, the output filter between inverter and motor.
Unsure about the type? Get personal advice on +45 70 22 00 66.
Technical specifications
| Family | VFD |
|---|---|
| Type | Accessories |
| Fits | UMI frequency inverters – see series in the description (B1/B5/B7) |
| Selected variant | UMI-S0020 – UMI-B1 0.4-0.75kW single-phase input filter C2 |
All types in EMC filters (VFD) (32)
| UMI-B1 0.4-0.75kW single-phase input filter C2 | |
| UMI-B1 1.5-2.2kW single-phase input filter C2 | |
| UMI-B1 0.75-2.2kW 3-phase input filter C2 | |
| UMI-B1 4-5.5kW 3-phase input filter C2 | |
| UMI-B1 7.5-11kW 3-phase input filter C2 | |
| UMI-B1 15-18kW 3-phase input filter C2 | |
| UMI-B1 22-30kW 3-phase input filter C2 | |
| UMI-B1 37-45kW 3-phase input filter C2 | |
| UMI-B1 55-75kW 3-phase input filter C2 | |
| UMI-B1 90-110kW 3-phase input filter C2 | |
| UMI-B1 0.4-2.2kW single-phase input filter C3 | |
| UMI-B1 0.75-2.2kW 3-phase input filter C3 | |
| UMI-B1 0.4-0.75kW single-phase output filter C2 | |
| UMI-B1 1.5-2.2kW single-phase output filter C2 | |
| UMI-B1 7.5-11kW 3-phase output filter C2 | |
| UMI-B1 15-18.5kW 3-phase output filter C2 | |
| UMI-B1 22-30kW 3-phase output filter C2 | |
| UMI-B1 37-45kW 3-phase output filter C2 | |
| UMI-B1 55-75kW 3-phase output filter C2 | |
| UMI-B1 90-110kW 3-phase output filter C2 | |
| UMI-B7 45kW 3-phase 230V input filter C2 | |
| UMI-B7 55kW 3-phase 230V input filter C2 | |
| UMI-B7 45kW 3-phase 230V output filter C2 | |
| UMI-B7 55kW 3-phase 230V output filter C2 | |
| UMI-B7 160-200kW 3-phase 480V input filter C2 | |
| UMI-B7 220-280kW 3-phase 480V input filter C2 | |
| UMI-B7 315-400kW 3-phase 480V input filter C2 | |
| UMI-B7 500kW 3-phase 480V input filter C2 | |
| UMI-B7 160-200kW 3-phase 480V output filter C2 | |
| UMI-B7 220-280kW 3-phase 480V output filter C2 | |
| UMI-B7 315-400kW 3-phase 480V output filter C2 | |
| UMI-B7 500kW 3-phase 480V output filter C2 |
