UNISTREAM · 10 VARIANTS

UniStream modular

HMI panel + snap-in CPU. Build exactly the I/O configuration the machine requires.

Panel and CPU are chosen separately
10,4″ multitouch (USP-104-M10) for advanced HMI solutions
Up to 2.048 I/O points
Web server, data logging, recipes, alarms and trends
User management and access levels in UniLogic

Your part number · USP-070-B10

USPUniStream HMI panel

0707″ display

B10Pro

1Choose component

2Choose version

3Choose display size

Display size3 digits = inches × 10

How to read the part number

USP / USC-P: UniStream HMI panel / snap-in CPU for the panel (ordered separately).
070 / 104 / 156: Display size: 7″, 10,4″, 15,6″.
B10 / C10: Pro / Pro with 5-year UniCloud Start-Up included.
B08 / C08: Standard (7″ only) / with 5-year UniCloud Start-Up.
M10: Multitouch panel with capacitive touch (10,4″ only).

Product sheet USP-070-B10 (PDF)Download UniLogic free

Unsure about the type? Get personal advice on +45 70 22 00 66.

Technical specifications

Family	UniStream
Display	7″, 10,4″ or 15,6″ touch
I/O	Up to 2.048 I/O via Uni-I/O and Remote I/O
Selected variant	USP-070-B10 – 7″ HMI panel, Pro
CPU	Snap-in CPU for panel (USC-P-B10)
Communication	Ethernet, USB, RS485, Modbus TCP, Modbus RTU, MQTT, OPC UA, CANopen, EtherCAT
Power supply	24 VDC
Software	UniLogic (free)
Product sheet for this type	USP-070-x10 User Guide

Documents for UniStream modular

All types in UniStream modular (10)

	7″ HMI panel, Pro
	10,4″ HMI panel, Pro
	10,4″ multitouch HMI panel (capacitive touch)
	7″ HMI panel, standard (B08)
	15,6″ HMI panel, Pro

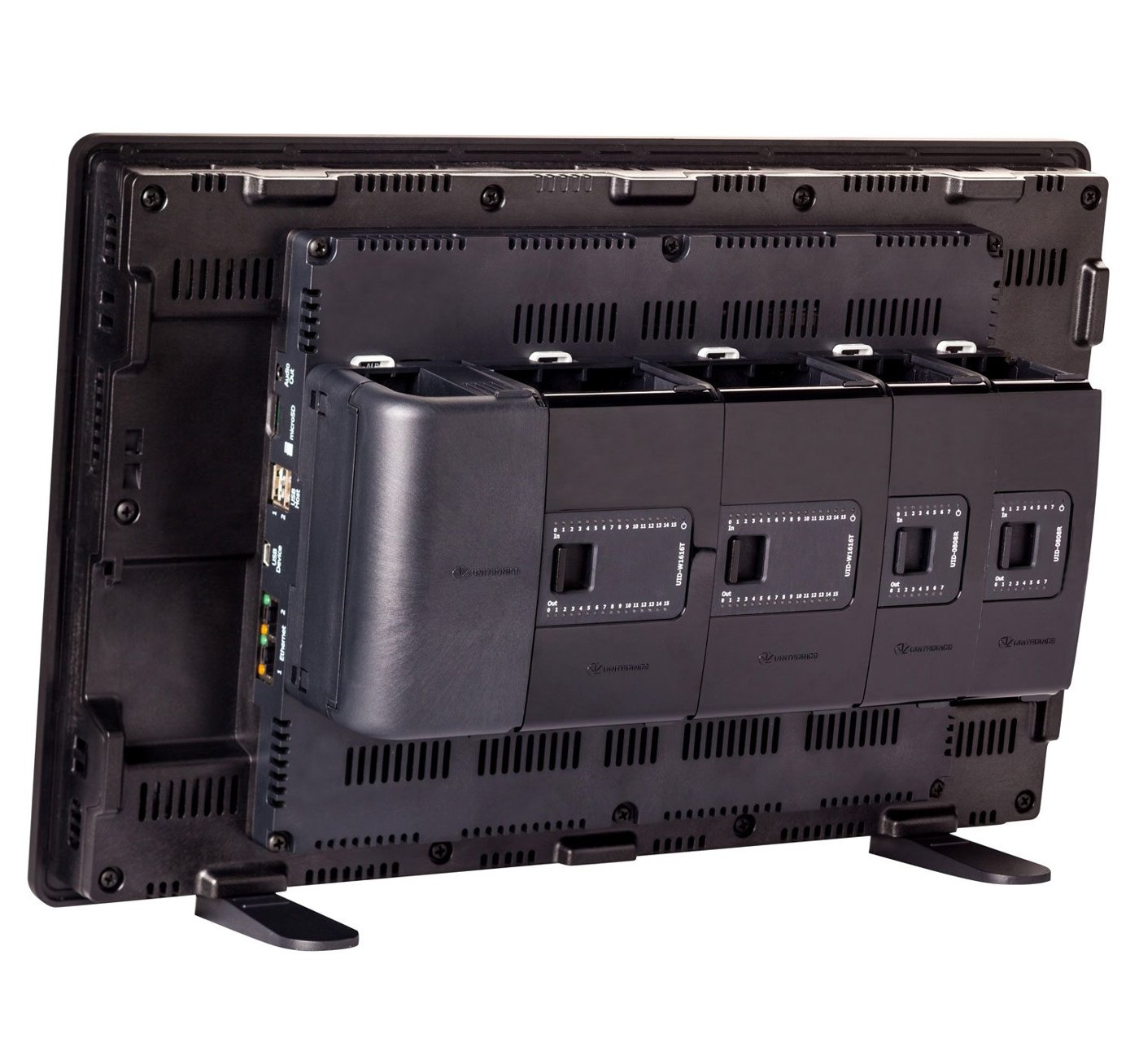

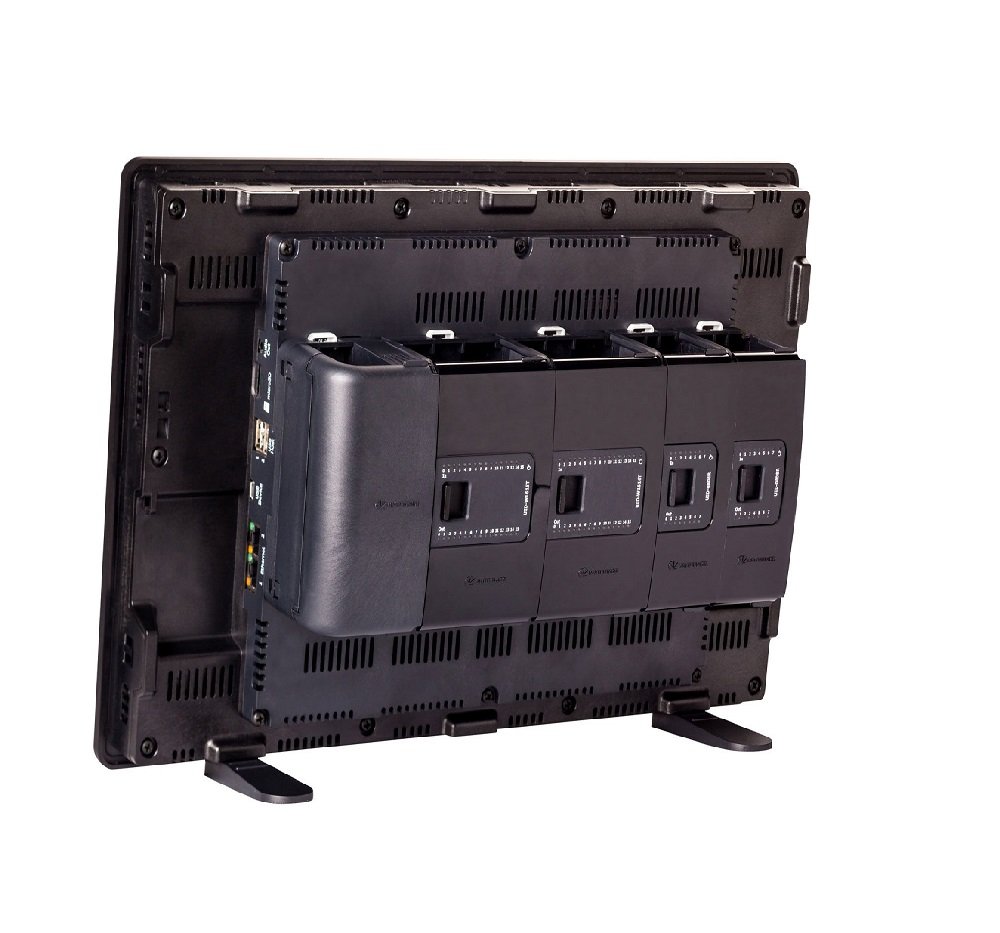

	CPU for HMI panel (snaps onto the back of the panel)
	7″ HMI panel, standard (B08 hardware) + 5-year UniCloud Start-Up
	7″ HMI panel, Pro (B10 hardware) + 5-year UniCloud Start-Up
	10,4″ HMI panel, Pro (B10 hardware) + 5-year UniCloud Start-Up
	15,6″ HMI panel, Pro (B10 hardware) + 5-year UniCloud Start-Up
