UNISTREAM · 32 VARIANTS

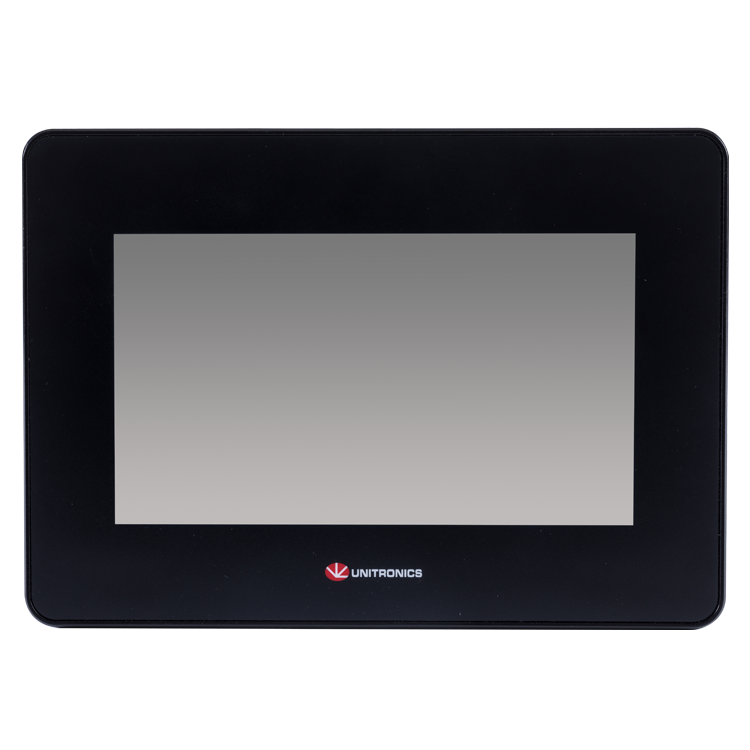

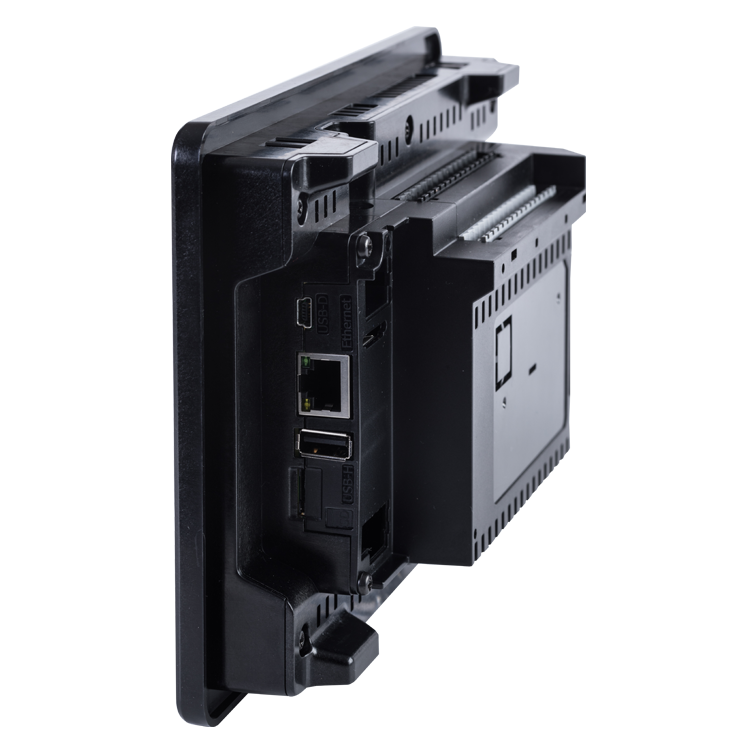

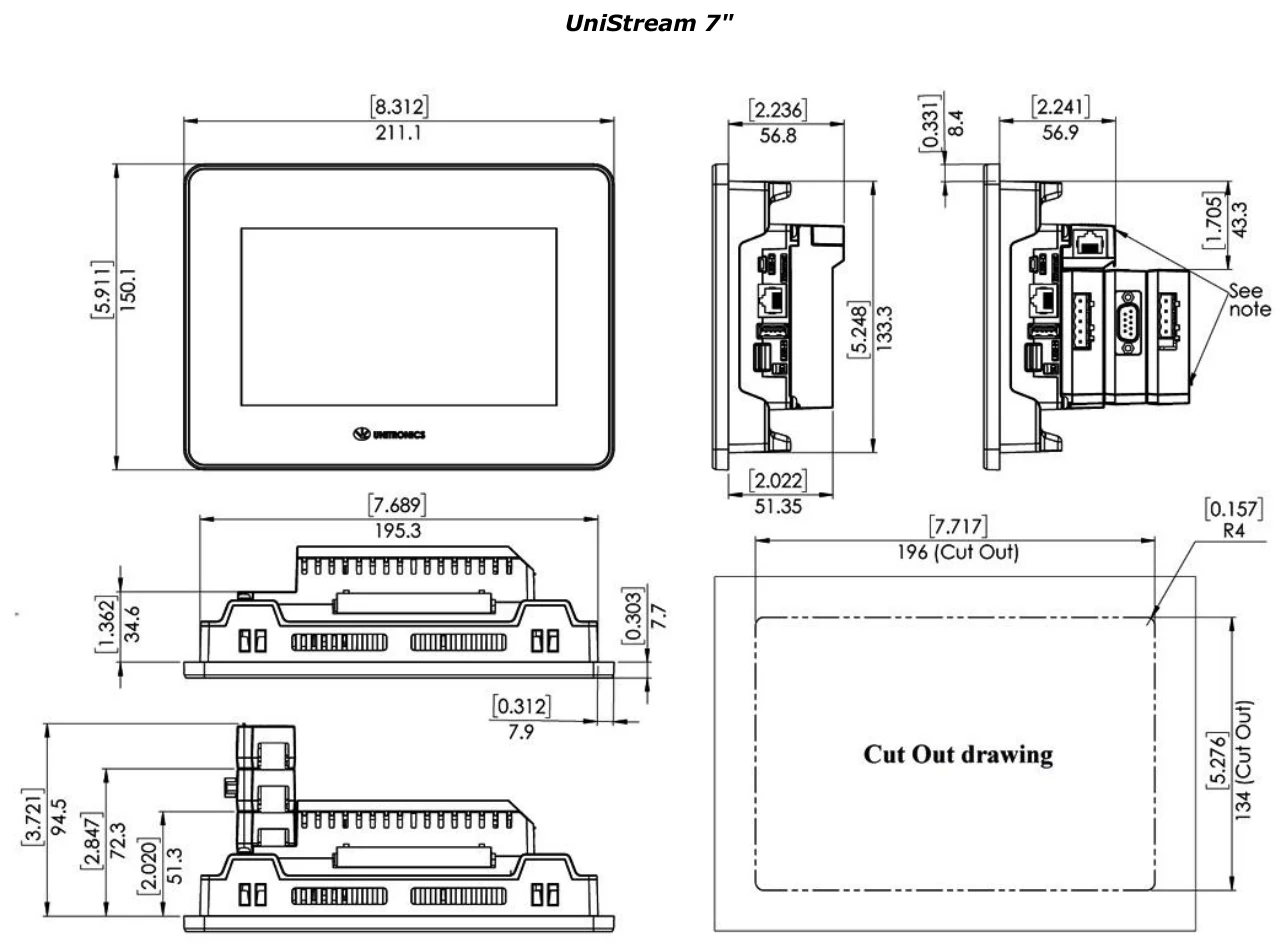

UniStream 7″ built-in

The most popular size for machine builders – display, PLC and I/O in one unit.

PLC, HMI and I/O in one compact housing
Web server, data logging, recipes, alarms and trends
User management and access levels in UniLogic
Expandable with Uni-I/O, Remote I/O and Uni-COM modules

Your part number · US7-B5-B1

US7UniStream built-in · 7″ colour touch, 800×480

B5Standard version · UniCloud-ready

B1No built-in I/O – expandable with Uni-I/O or Remote I/O

1Choose version

2Choose built-in I/O

Without built-in I/OAll I/O is added as modules

Digital I/O + 2 analogue inputsR = relay · T = transistor

With temperature and analogue outputsA = analogue/temperature

How to read the part number

US + number / USC: UniStream built-in; the number is the display size (5″, 7″, 10,1″, 15,6″). USC = PLC without display.
B5 / B10 · C5 / C10: Standard (5) or Pro version (10). Pro adds web server, video, SQL client and audio output.
B / C: B = UniCloud-ready. C = same hardware with a 5-year UniCloud Start-Up included.
B1: No built-in I/O.
R / T: Relay outputs / transistor outputs (pnp, fast, wear-free; npn on TR22).
A: Analogue outputs and temperature inputs (RTD/thermocouple).
The number at the end: Total number of built-in I/O points.

Product sheet US7-B5-B1 (PDF)Download UniLogic free

Unsure about the type? Get personal advice on +45 70 22 00 66.

Technical specifications

Family	UniStream
Display	7″ colour touch, 800×480
I/O	Built-in I/O depending on variant + expansion
Selected variant	US7-B5-B1 – Standard · No built-in I/O – expandable with Uni-I/O or Remote I/O
CPU	Standard (B5) or Pro (B10: + web server, video, SQL, audio output)
Communication	Ethernet, USB, RS485, Modbus TCP, Modbus RTU, MQTT, OPC UA, CANopen, EtherCAT
Power supply	24 VDC
Software	UniLogic (free)
Product sheet for this type	US7-x5-B1 User Guide

Documents for UniStream 7″ built-in

All types in UniStream 7″ built-in (32)

	Standard · No built-in I/O – expand with Uni-I/O or Remote I/O
	Standard + 5-year UniCloud · No built-in I/O – expandable with Uni-I/O or Remote I/O
	Pro · No built-in I/O – expand with Uni-I/O or Remote I/O
	Pro + 5-year UniCloud · No built-in I/O – expand with Uni-I/O or Remote I/O
	Standard · 10 DI, 2 AI, 8 relay, 2 transistor (npn, PWM) · Relay + transistor
	Standard + 5-year UniCloud · 10 DI, 2 AI, 8 relay, 2 transistor (npn, PWM) · Relay + transistor
	Pro · 10 DI, 2 AI, 8 relay, 2 transistor (npn, PWM) · Relay + transistor
	Pro + 5-year UniCloud · 10 DI, 2 AI, 8 relay, 2 transistor (npn, PWM) · Relay + transistor
	Standard · 10 DI, 2 AI, 12 transistor (pnp) · Transistor
	Standard + 5-year UniCloud · 10 DI, 2 AI, 12 transistor (pnp) · Transistor
	Pro · 10 DI, 2 AI, 12 transistor (pnp) · Transistor
	Pro + 5-year UniCloud · 10 DI, 2 AI, 12 transistor (pnp) · Transistor
	Standard · 24 DI (4 HSC), 2 AI, 12 relay · Relay
	Standard + 5-year UniCloud · 24 DI (4 HSC), 2 AI, 12 relay · Relay
	Pro · 24 DI (4 HSC), 2 AI, 12 relay · Relay
	Pro + 5-year UniCloud · 24 DI (4 HSC), 2 AI, 12 relay · Relay
	Standard · 24 DI (4 HSC), 2 AI, 16 transistor (pnp, 2 PWM) · Transistor
	Standard + 5-year UniCloud · 24 DI (4 HSC), 2 AI, 16 transistor (pnp, 2 PWM) · Transistor
	Pro · 24 DI (4 HSC), 2 AI, 16 transistor (pnp, 2 PWM) · Transistor
	Pro + 5-year UniCloud · 24 DI (4 HSC), 2 AI, 16 transistor (pnp, 2 PWM) · Transistor
	Standard · 14 DI (2 HSC), 2 AI, 2 temperature (RTD/TC), 8 relay, 2 AO · Relay
	Standard + 5-year UniCloud · 14 DI (2 HSC), 2 AI, 2 temperature (RTD/TC), 8 relay, 2 AO · Relay
	Pro · 14 DI (2 HSC), 2 AI, 2 temperature (RTD/TC), 8 relay, 2 AO · Relay
	Pro + 5-year UniCloud · 14 DI (2 HSC), 2 AI, 2 temperature (RTD/TC), 8 relay, 2 AO · Relay
	Standard · 14 DI (2 HSC), 2 AI, 2 temperature (RTD/TC), 10 transistor (pnp), 2 AO · Transistor
	Standard + 5-year UniCloud · 14 DI (2 HSC), 2 AI, 2 temperature (RTD/TC), 10 transistor (pnp), 2 AO · Transistor
	Pro · 14 DI (2 HSC), 2 AI, 2 temperature (RTD/TC), 10 transistor (pnp), 2 AO · Transistor
	Pro + 5-year UniCloud · 14 DI (2 HSC), 2 AI, 2 temperature (RTD/TC), 10 transistor (pnp), 2 AO · Transistor
	Standard · 13 DI (2 HSC), 6 AI (2 isolated), 2 temperature (RTD/TC), 8 transistor (pnp, 2 PWM), 3 AO · Transistor
	Standard + 5-year UniCloud · 13 DI (2 HSC), 6 AI (2 isolated), 2 temperature (RTD/TC), 8 transistor (pnp, 2 PWM), 3 AO · Transistor
	Pro · 13 DI (2 HSC), 6 AI (2 isolated), 2 temperature (RTD/TC), 8 transistor (pnp, 2 PWM), 3 AO · Transistor
	Pro + 5-year UniCloud · 13 DI (2 HSC), 6 AI (2 isolated), 2 temperature (RTD/TC), 8 transistor (pnp, 2 PWM), 3 AO · Transistor

MATCHING ACCESSORIES

Expand UniStream 7″ built-in

Built-in: extra Uni-I/O is mounted on DIN rail via a UAG-CX expansion kit, and Uni-COM must be the CX type.

ACCESSORIES · 17 VARIANTS Unitronics Uni-I/O™ modules

Uni-I/O™ modules

Snap-in I/O for UniStream – directly on the CPU or in a local expansion on DIN rail.

Fits: Modular & PLC: snaps directly onto the CPU · Built-in: via local expansion kit

Digital, analogue and temperature
UniStream bus

UID-1600UID-0016TUID-0808R+14

See the model

ACCESSORIES · 10 VARIANTS Unitronics Uni-COM™ communication modules

Uni-COM™ communication modules

Extra RS232, RS485 and CANbus ports plus EtherCAT master for UniStream.

Fits: Choose module series by controller: CX for built-in, CB and EtherCAT master for PLC without display (USC-B5/B10), standard for modular CPU (CPU-for-Panel)
