All UniStream models
UNISTREAM · 10 VARIANTS
Uni-COM™ communication modules
Extra RS232, RS485 and CANbus ports plus EtherCAT master for UniStream.

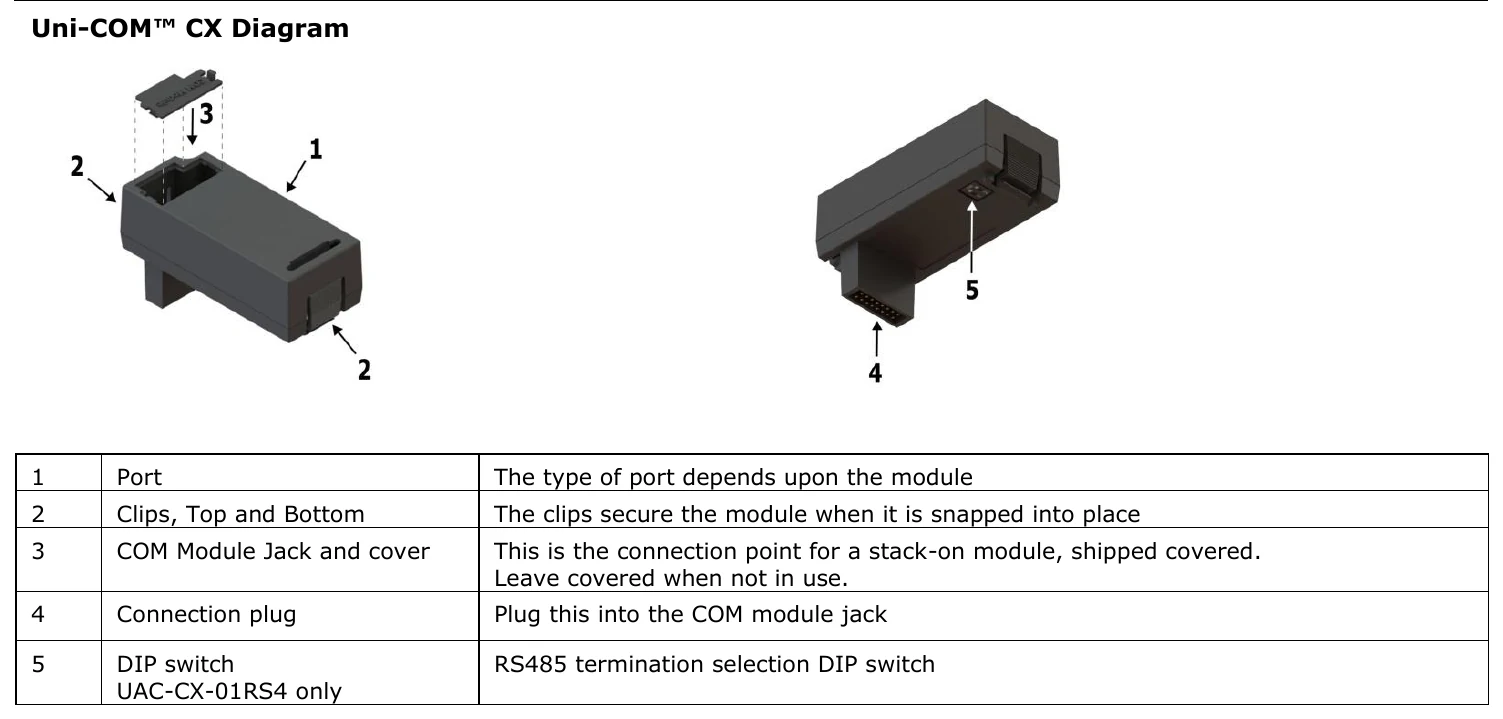

- Snaps onto the back of the controller
- Configured in UniLogic
Your part number · UAC-CX-01RS2
UAC-CXUni-COM for built-in01RS21 × RS2321Choose controller
2Choose port
Ports01 / 02 = number of ports
How to read the part number
- UAC
- Uni-COM communication module.
- CX / CB
- For built-in / for PLC without display. Without CX/CB = for modular CPU (CPU-for-Panel) – except UAC-01EC2, which is for PLC without display.
- 01 / 02
- Number of ports.
- RS2 / RS4 / RSC / CAN / EC
- RS232 / RS485 / RS232 + RS485 / CANbus / EtherCAT master.
Unsure about the type? Get personal advice on +45 70 22 00 66.
Technical specifications
| Family | UniStream |
|---|---|
| Type | Communication |
| Fits | Choose module series by controller: CX for built-in, CB and EtherCAT master for PLC without display (USC-B5/B10), standard for modular CPU (CPU-for-Panel) |
| Selected variant | UAC-CX-01RS2 – Built-in (CX) · 1 × RS232 |
| Communication | RS232, RS485, CANbus, EtherCAT |
| Power supply | Via the controller |
| Software | UniLogic (free) |
| Product sheet for this type | Uni-COM UAC-CX-01RS2 User Guide |
Documents for Uni-COM™ communication modules
- Product sheet · Uni-COM UAC-CX-01RS2 User Guide
- Product sheet · UAC-CB-01RS2 User Guide
- Product sheet · UAC-01RS2 User Guide
- Product sheet · UAC-01EC2 Specification
All types in Uni-COM™ communication modules (10)
| Built-in (CX) · 1 × RS232 | |
| Built-in (CX) · 1 × RS485 | |
| Built-in (CX) · 1 × CANbus | |
| PLC without display (CB) · 1 × RS232 | |
| PLC without display (CB) · 1 × RS485 | |
| PLC without display (CB) · 1 × CANbus | |
| Modular CPU · 1 × RS232 | |
| Modular CPU · 2 × RS232 | |
| Modular CPU · 1 × RS232 + 1 × RS485 | |
| PLC without display (USC-B5/B10) · EtherCAT master |
