UNISTREAM · 32 VARIANTS
UniStream 5″ built-in
Compact all-in-one PLC + HMI with built-in I/O.
- 5″ colour touch, 800×480
- Built-in I/O depending on variant + expansion
- Ethernet, USB, RS485
US5-B5-B1US5-C5-B1US5-B10-B1+29
All productsUNISTREAM · 8 MODELS
Unitronics UniStream
Scalable control with integrated or modular HMI, advanced communication and motion in one development environment.
MODELOVERSIGT
Choose a model to see variants and specifications.
UNISTREAM · 32 VARIANTS
UniStream 7″ built-in
The most popular size for machine builders – display, PLC and I/O in one unit.
- 7″ colour touch, 800×480
- Built-in I/O depending on variant + expansion
- Ethernet, USB, RS485
US7-B5-B1US7-C5-B1US7-B10-B1+29
UNISTREAM · 32 VARIANTS
UniStream 10,1″ built-in
Large operator interface with built-in I/O for complex machines.
- 10,1″ colour touch, 1024×600
- Built-in I/O depending on variant + expansion
- Ethernet, USB, RS485
US10-B5-B1US10-C5-B1US10-B10-B1+29
UNISTREAM · 2 VARIANTS
UniStream 15,6″ built-in
The largest built-in: 15,6″ PLC + HMI without built-in I/O – expand with Uni-I/O via a rear adapter or Remote I/O.
- 15,6″ colour touch, 1366×768
- No built-in I/O – Uni-I/O via UAG-BACK-IOADP or Remote I/O
- Ethernet, USB, RS485
US15-B10-B1US15-C10-B1
UNISTREAM · 10 VARIANTS

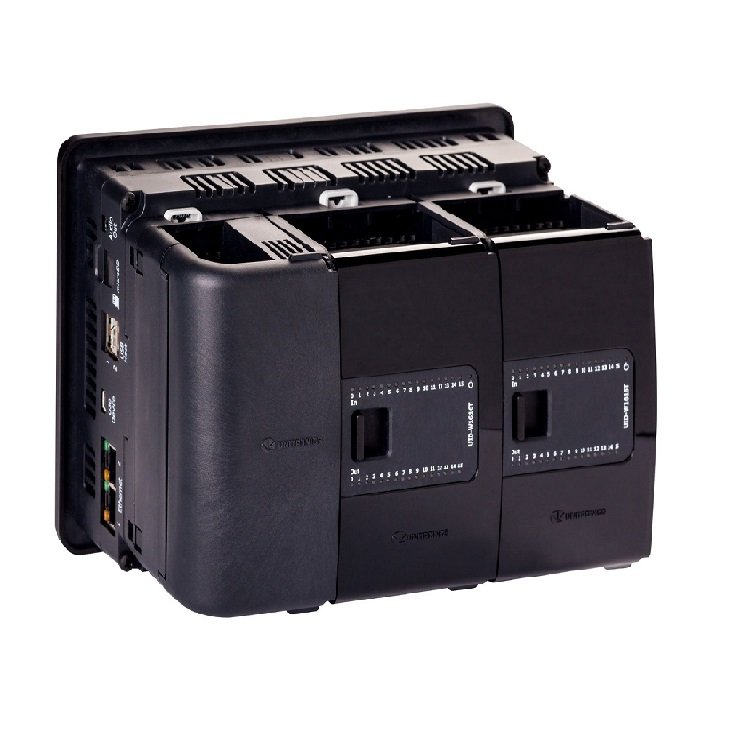

UniStream modular
HMI panel + snap-in CPU. Build exactly the I/O configuration the machine requires.
- 7″, 10,4″ or 15,6″ touch
- Up to 2.048 I/O via Uni-I/O and Remote I/O
- Ethernet, USB, RS485
USP-070-B10USP-104-B10USP-104-M10+7
UNISTREAM · 5 VARIANTS

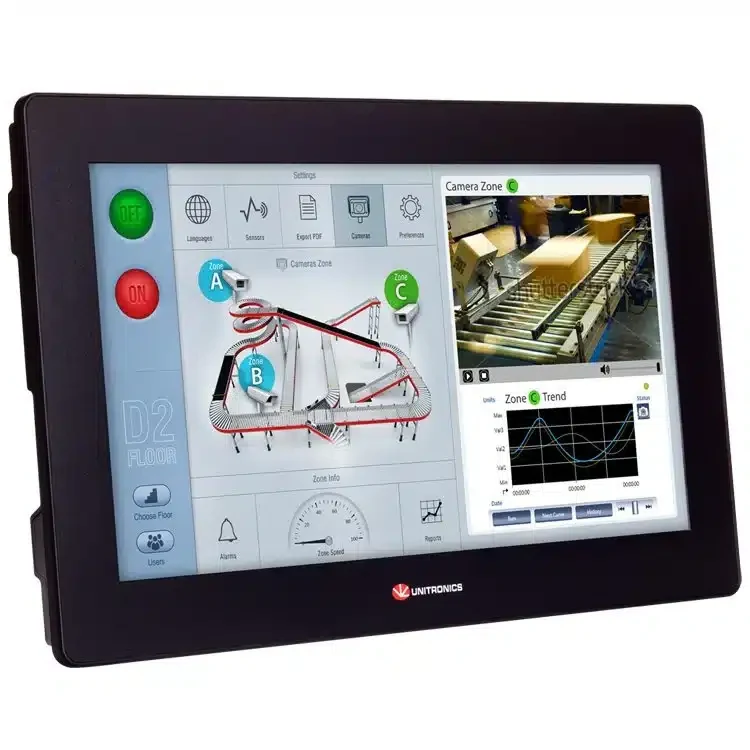

UniStream Light panel
Compact HMI panels from 5″ to 21,5″, IP66/NEMA4X when panel-mounted.
- 5″–21,5″ touch
- HMI panel
- Ethernet, USB, Modbus TCP
USL-050-B05USL-070-B05USL-101-B05+2
UNISTREAM · 32 VARIANTS
UniStream PLC (without display)
DIN-rail CPU for control without a local HMI – operate via web or a remote panel.
- None – DIN rail
- Up to 2.048 I/O
- Ethernet, USB, RS485
USC-B5-B1USC-C5-B1USC-B10-B1+29
UNISTREAM · 4 VARIANTS
UniStream PLC Basic (B3)
Compact DIN-rail PLC with built-in I/O and Virtual HMI – operated from web, PC or a Light panel.
- None – Virtual HMI
- 10 DI, 2 AI, 8 outputs
- Ethernet, USB, Modbus TCP
USC-B3-R20USC-B3-T20USC-C3-T20+1
ACCESSORIES & EXPANSIONS
Modules that fit UniStream.
Modular and PLC without display: Uni-I/O and Uni-COM snap directly onto the CPU. Built-in (5″, 7″, 10,1″): have I/O in the housing; extra Uni-I/O requires a local expansion kit (UAG-CX) for DIN rail, and Uni-COM must be the CX type.
ACCESSORIES · 17 VARIANTS
Uni-I/O™ modules
Snap-in I/O for UniStream – directly on the CPU or in a local expansion on DIN rail.
Fits: Modular & PLC: snaps directly onto the CPU · Built-in: via local expansion kit
- Digital, analogue and temperature
- UniStream bus
UID-1600UID-0016TUID-0808R+14
ACCESSORIES · 10 VARIANTS
Uni-COM™ communication modules
Extra RS232, RS485 and CANbus ports plus EtherCAT master for UniStream.
Fits: Choose module series by controller: CX for built-in, CB and EtherCAT master for PLC without display (USC-B5/B10), standard for modular CPU (CPU-for-Panel)
- Communication
- RS232, RS485, CANbus
UAC-CX-01RS2UAC-CX-01RS4UAC-CX-01CAN+7
ACCESSORIES · 17 VARIANTS
Local expansion kit
Move Uni-I/O out onto DIN rail and add more modules than there is room for on the controller.
Fits: UAG-CX for built-in · UAG-XK for modular & PLC
- Uni-I/O expansion
- UniStream bus
UAG-CX-XKP125UAG-CX-XKP300UAG-XK125+14
ACCESSORIES · 14 VARIANTS
Spare fronts (UniStream)
Spare fronts for UniStream built-in and modular HMI panels – with or without Unitronics logo.
Fits: UniStream built-in 5″/7″ and modular HMI panels
- Spare part
F-US5NBF-US5UBF-US7NB+11
UNISTREAM IN BRIEF
One platform – and it talks to almost everything.
- PLC + HMI in one unit or PLC without display – with many I/O and communication options
- Touchscreens from 5″ to 21,5″, for horizontal or vertical mounting
- Built-in web server: remote HMI with full functionality
- HMI in any language – including Asian characters
- Extend storage with USB sticks and microSD cards
- Robust design and wide temperature range
- Ready for UniCloud: operating data and secure remote support
- Approved to CE, UL, cUL, UKCA, EAC and Hazardous Locations
- Available without logo or in your own OEM design
| Protocol | Server / slave | Client / master | Note |
|---|---|---|---|
| EtherNet/IP | Yes | Yes | Explicit and implicit messages, EDS files |
| Modbus RTU / TCP | Yes | Yes | |
| EtherCAT | – | Yes | Master |
| CANopen | No | Yes | PDO and SDO, EDS files |
| CANbus | Yes | Yes | Raw CAN and J1939 |
| OPC UA | Yes | No | |
| MQTT | – | – | Publisher and subscriber, JSON or raw – e.g. AWS and Google Cloud IoT |
| REST API | No | Yes | HTTP/HTTPS, GET/POST/PUT/DELETE |
| SQL Client | No | Yes | Microsoft SQL, PostgreSQL and MySQL |
| FTP | Yes | Yes | Also SFTP and FTPS |
| SNMP | Yes | Yes | v1, v2 and v3 |
| BACnet | Yes | Yes | BACnet IP server in all models; MS/TP and IP client on PLC and built-in. Requires licence |
| IO-Link | Yes | No | Via IO-Link master and hubs |
| HART | No | Yes | Via analogue input module UIA-0800NH |
| OCPP | Yes | No | Charging stations, v1.6 – PRO models (B10) only, requires licence |
| Redfish | Yes | No | CDU data (data-centre cooling) – built-in standard and pro |
| RS232 / RS485 / USB | Yes | Yes | Message Composer for e.g. barcode readers and printers |
| No | Yes | Sending from the controller |
Source: Unitronics, UniStream Series Key Features. Features depend on model and firmware.
