All Samba models
SAMBA · 4 VARIANTS
Communication modules (V100-17)
Add Ethernet, isolated RS232/485 or CANbus to Samba.
- Mounted on the back of Samba
- Configured in VisiLogic

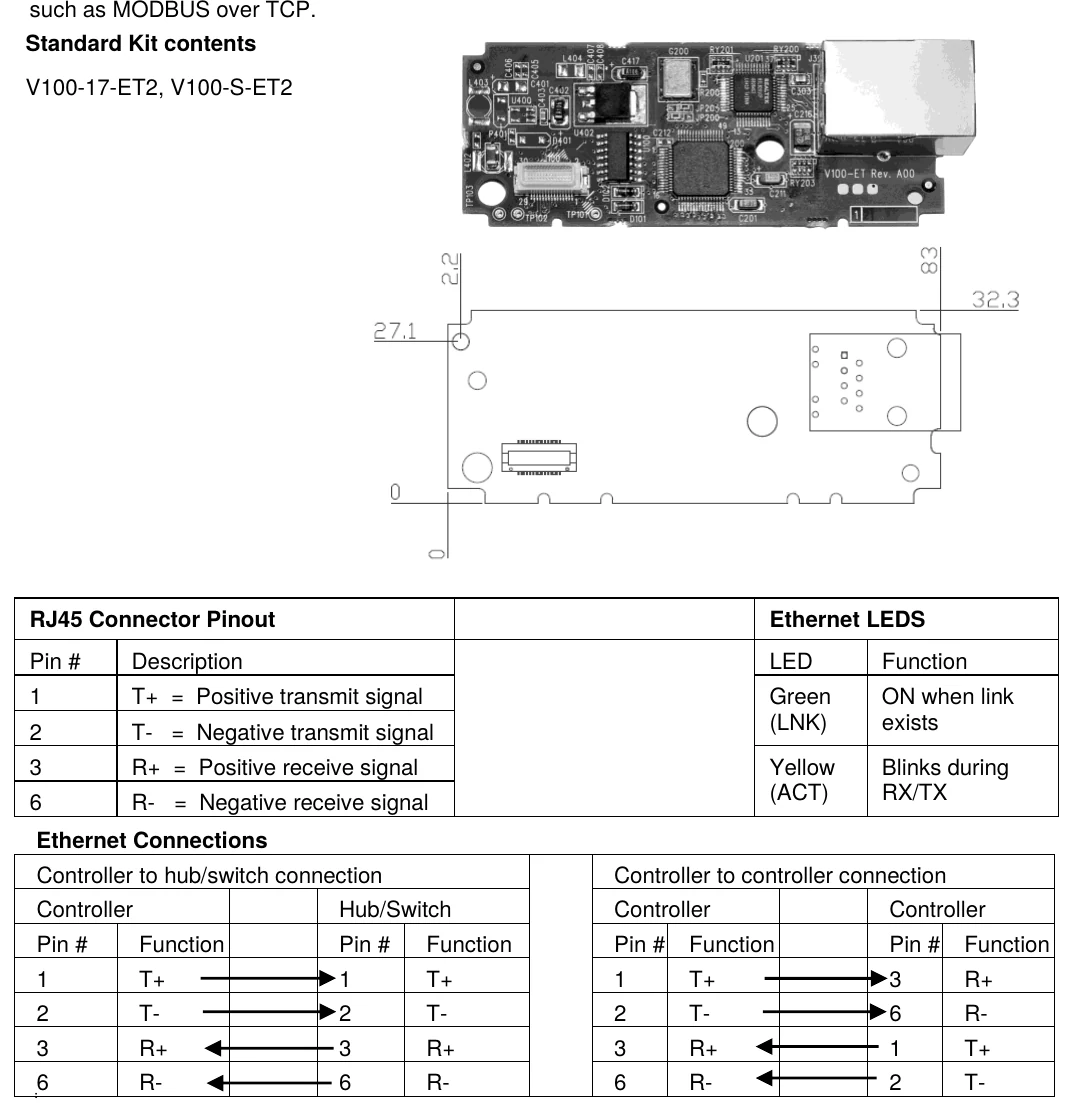

Your part number · V100-17-ET2
V100-17Communication moduleET2Ethernet1Choose protocol
ProtocolX = isolated
How to read the part number
- V100
- For Vision 130/350/430 and Samba (PB1 for Vision 130/350 only).
- 17 / S
- Standard / extended temperature range (-30 to 60 °C).
- V200-19
- For Vision 570–1210.
- ET2 / RS4 / CAN / PB1
- Ethernet / RS232/RS485 / CANbus / PROFIBUS DP slave.
- X
- Isolated serial port.
Unsure about the type? Get personal advice on +45 70 22 00 66.
Technical specifications
| Family | Samba |
|---|---|
| Type | Communication |
| Fits | All Samba models (V100-17 modules) |
| Selected variant | V100-17-ET2 – Ethernet |
| Communication | Ethernet, RS232/485, CANbus, Profibus DP |
| Power supply | Via the controller |
| Software | VisiLogic (free) |
All types in Communication modules (V100-17) (4)
| Ethernet | |
| RS232/485 | |
| RS232/485, isolated | |
| CANbus |
