ACCESSORIES · 4 VARIANTS
Communication modules (V100-17)
Add Ethernet, isolated RS232/485 or CANbus to Samba.
Fits: All Samba models (V100-17 modules)
- Communication
- Ethernet, RS232/485, CANbus
V100-17-ET2V100-17-RS4V100-17-RS4X+1
All Samba models
MATCHING ACCESSORIES
SAMBA · 4 VARIANTS

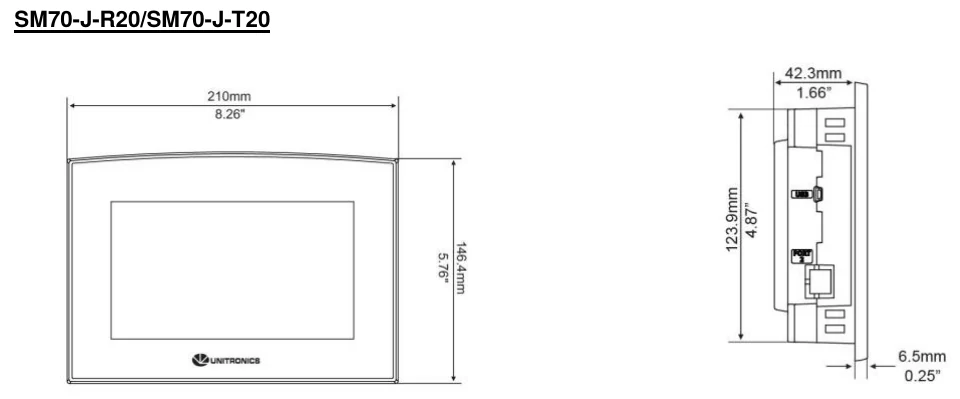

Samba 7″
Compact colour touch PLC with built-in I/O.
- Space-saving all-in-one
- PID and data logging
- HMI graphics and alarms
Your part number · SM70-J-R20
SM70Samba · 7″ colour touchJJ-versionR2012 DI (incl. 2 analogue, 1 HSC), 8 relay1Choose built-in I/O
Digital I/O + 2 analogue inputs
With temperature and analogue outputs
How to read the part number
- SM + number
- Samba with 3,5″, 4,3″ or 7″ colour touchscreen.
- R / T
- Relay outputs / transistor outputs.
- A
- 2 PT100/TC inputs and 2 analogue outputs.
- The number
- Total number of built-in I/O.
Unsure about the type? Get personal advice on +45 70 22 00 66.
Technical specifications
| Family | Samba |
|---|---|
| Display | 7″ colour touch |
| I/O | Built-in I/O depending on variant |
| Selected variant | SM70-J-R20 – 12 DI (incl. 2 analogue, 1 HSC), 8 relay |
| Output type | Relay |
| CPU | Samba CPU |
| Communication | RS232/485, Ethernet (optional), Modbus RTU, Modbus TCP |
| Power supply | 24 VDC |
| Software | VisiLogic (free) |
| Product sheet for this type | SM70-J-R20 User Guide |
Documents for Samba 7″
- Product sheet · SM70-J-R20 User Guide
- Product sheet · SM70-J-TA22 User Guide
- Product sheet · SM70-J-RA22 User Guide
All types in Samba 7″ (4)
| 12 DI (incl. 2 analogue, 1 HSC), 8 relay · Relay | |
| 12 DI (incl. 2 analogue, 3 HSC), 8 transistor · Transistor | |
| 12 DI (incl. 2 analogue, 2 PT100/TC, 1 HSC), 8 transistor, 2 AO · Transistor | |
| 12 DI (incl. 2 analogue, 2 PT100/TC, 1 HSC), 8 relay, 2 AO · Relay |
Expand Samba 7″
ACCESSORIES · 6 VARIANTS
Spare fronts (Samba)
Spare fronts for Samba – with or without Unitronics logo.
Fits: Samba 3,5″, 4,3″ and 7″
- Spare part
F-SM35JNDF-SM35JUDF-SM43JND+3
