All Samba models
SAMBA · 4 VARIANTS

Samba 4,3″

Compact colour touch PLC with built-in I/O.

  • Space-saving all-in-one
  • PID and data logging
  • HMI graphics and alarms
Your part number · SM43-J-R20
SM43Samba · 4,3″ colour touch
JJ-version

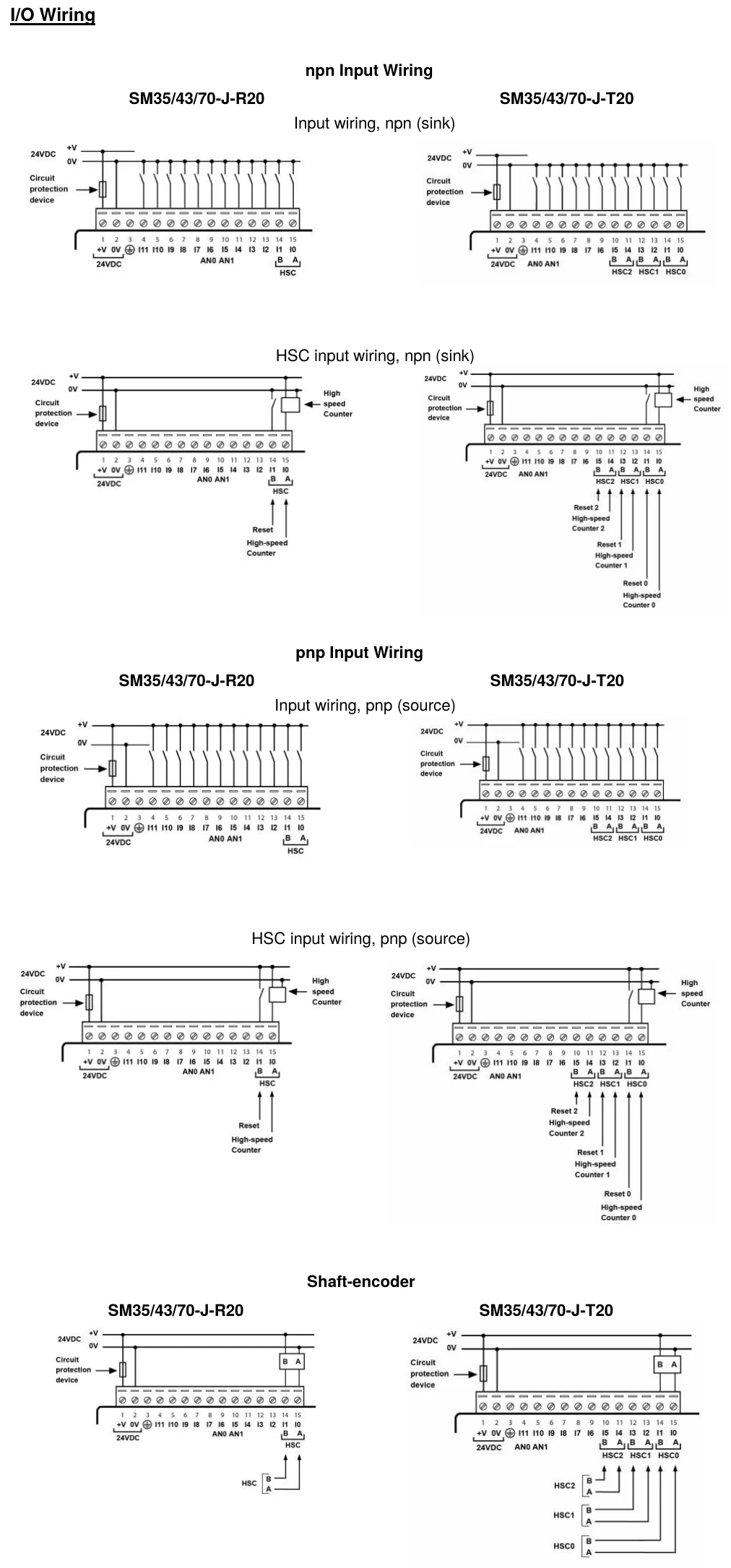

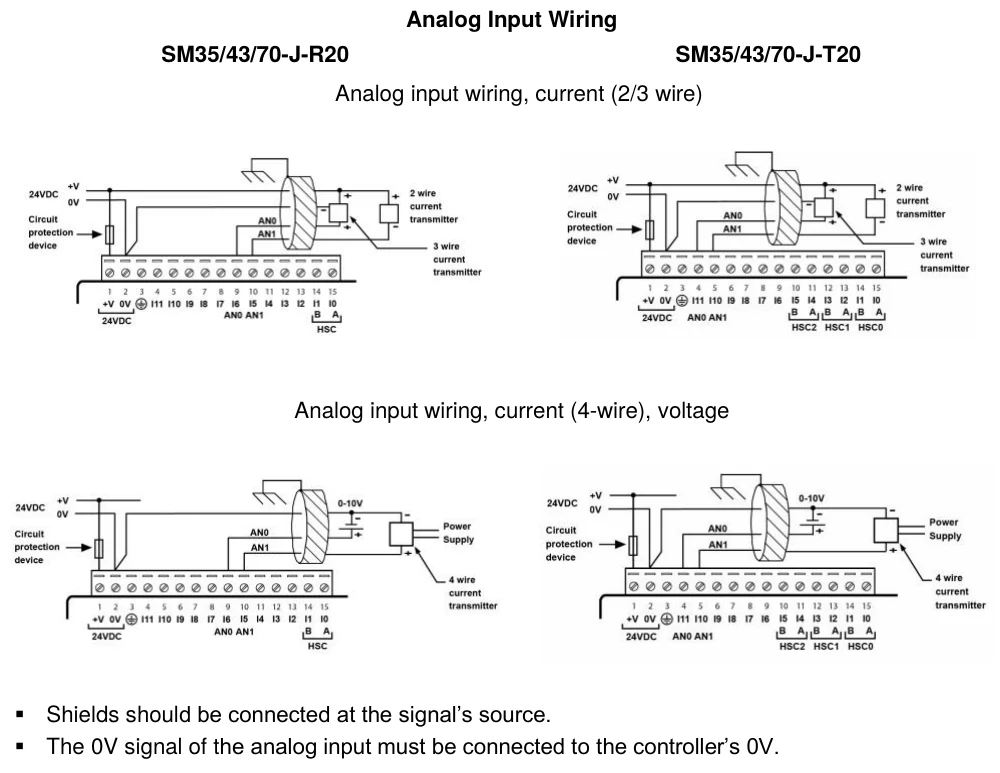

R2012 DI (incl. 2 analogue, 1 HSC), 8 relay

1Choose built-in I/O

Digital I/O + 2 analogue inputs
With temperature and analogue outputs
How to read the part number
SM + number
Samba with 3,5″, 4,3″ or 7″ colour touchscreen.
R / T
Relay outputs / transistor outputs.
A
2 PT100/TC inputs and 2 analogue outputs.
The number
Total number of built-in I/O.
Product sheet SM43-J-R20 (PDF)Download VisiLogic free

Unsure about the type? Get personal advice on +45 70 22 00 66.

Technical specifications

FamilySamba
Display4,3″ colour touch
I/OBuilt-in I/O depending on variant
Selected variantSM43-J-R20 – 12 DI (incl. 2 analogue, 1 HSC), 8 relay
Output typeRelay
CPUSamba CPU
CommunicationRS232/485, Ethernet (optional), Modbus RTU, Modbus TCP
Power supply24 VDC
SoftwareVisiLogic (free)
Product sheet for this typeSM43-J-R20 User Guide

Documents for Samba 4,3″

All types in Samba 4,3″ (4)
12 DI (incl. 2 analogue, 1 HSC), 8 relay · Relay
12 DI (incl. 2 analogue, 3 HSC), 8 transistor · Transistor
12 DI (incl. 2 analogue, 2 PT100/TC, 1 HSC), 8 transistor, 2 AO · Transistor
12 DI (incl. 2 analogue, 2 PT100/TC, 1 HSC), 8 relay, 2 AO · Relay
