JAZZ & M91 · 10 VARIANTS

M91 micro-PLC

Micro-PLC with 2×16 character display, keypad and built-in I/O – expandable with EX/IO modules.

Your part number · M91-2-R1

M91-2M91 micro-PLC with text display and keypad

R110 DI, 1 AI, 6 relay

Relay outputsR = relay

Transistor outputsT = transistor

With built-in CANbusC = CANbus

Analogue / universalA = analogue outputs · U = universal

How to read the part number

R / T: Relay outputs / transistor outputs.
C at the end: Built-in CANbus port (R2C, R6C, T2C).
RA / UA / UN: With analogue outputs (RA22, UA2) or universal I/O without analogue outputs (UN2).
R34 / T38 / RA22: The number = total number of built-in I/O.
R1 / T1 / UA2 / UN2: Variant designation – see I/O on the button.

Unsure about the type? Get personal advice on +45 70 22 00 66.

Technical specifications

Family	Jazz & M91
Display	2×16 character text
I/O	Built-in I/O depending on variant

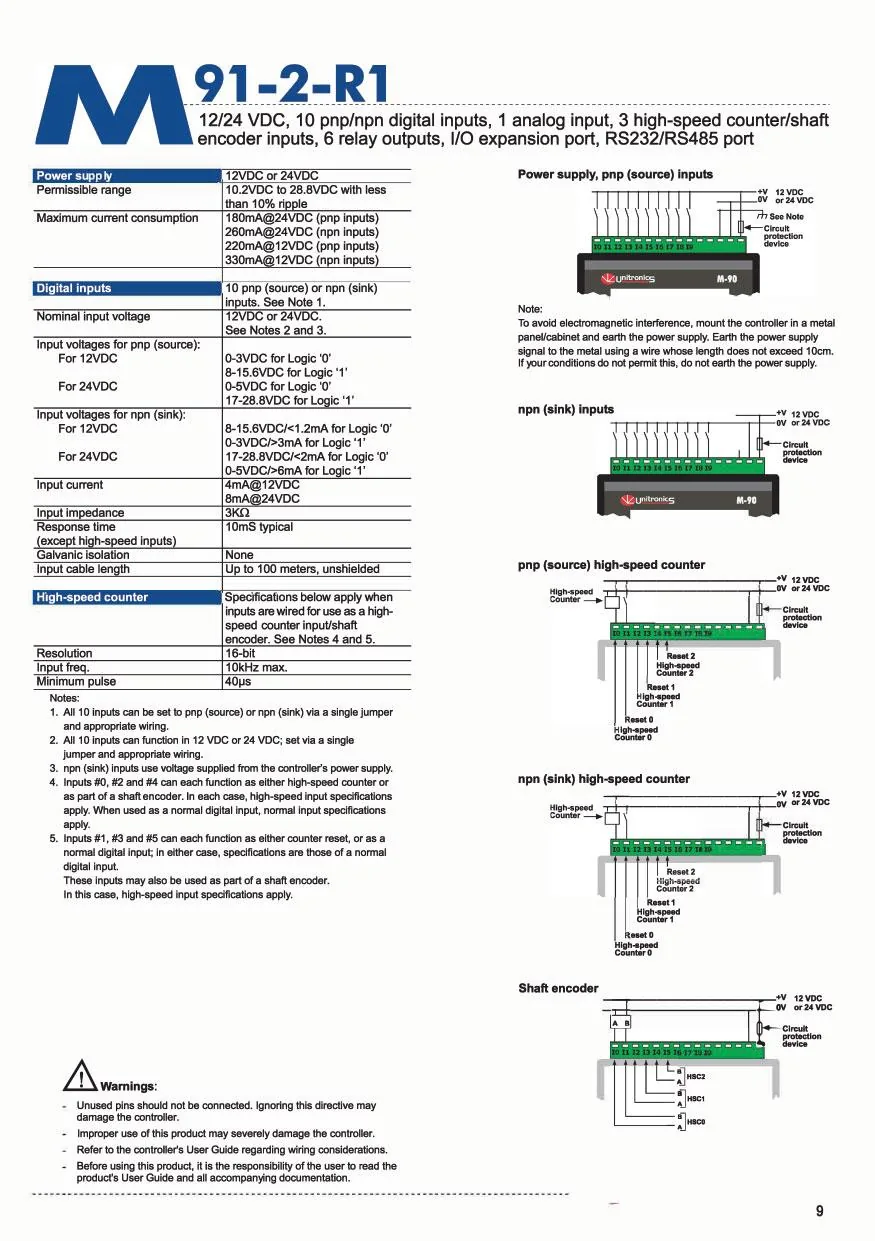

Selected variant	M91-2-R1 – 10 DI, 1 AI, 6 relay
Output type	Relay
CPU	M91 CPU
Communication	RS232/485, Modbus RTU
Power supply	24 VDC
Software	U90 Ladder (free)

All types in M91 micro-PLC (10)

	10 DI, 1 AI, 6 relay · Relay
	20 DI, 2 AI, 12 relay · Relay
	10 DI, 2 AI, 8 relay, 2 AO · Relay
	12 DI, 12 transistor · Transistor
	22 DI, 16 transistor · Transistor
	10 DI, 2 AI, 10 transistor, 2 AO · Transistor
	10 DI, 2 AI, 12 transistor · Transistor
	10 DI, 2 AI, 6 relay, CANbus · Relay
	6 DI, 6 AI, 6 relay, CANbus · Relay
	12 DI, 2 AI, 12 transistor, CANbus · Transistor
