All Jazz & M91 models
JAZZ & M91 · 6 VARIANTS

Jazz modules and programming

Programming kit, serial port and Ethernet for Jazz.

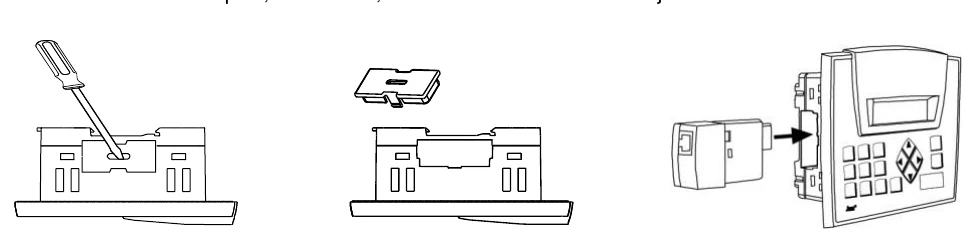

  • Plugs into Jazz’s module port

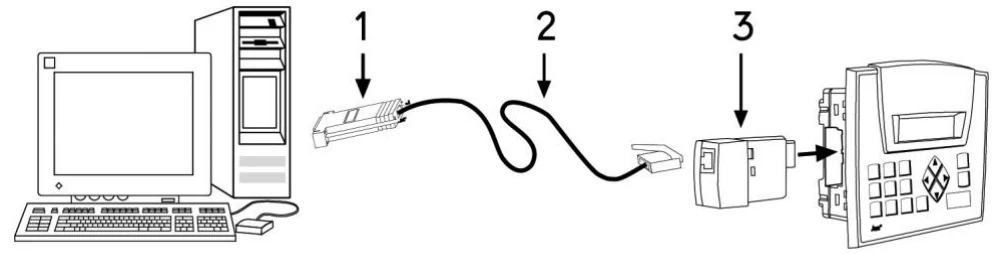

  • Program via RS232 or Ethernet
Your part number · JZ-PRG
JZ-PRGProgramming kit: RS232 module and SubD9 adapter

1Choose type

Programming
Communication modulesPlugs into Jazz’s module port
Program copying
Front
Download U90 Ladder free

Unsure about the type? Get personal advice on +45 70 22 00 66.

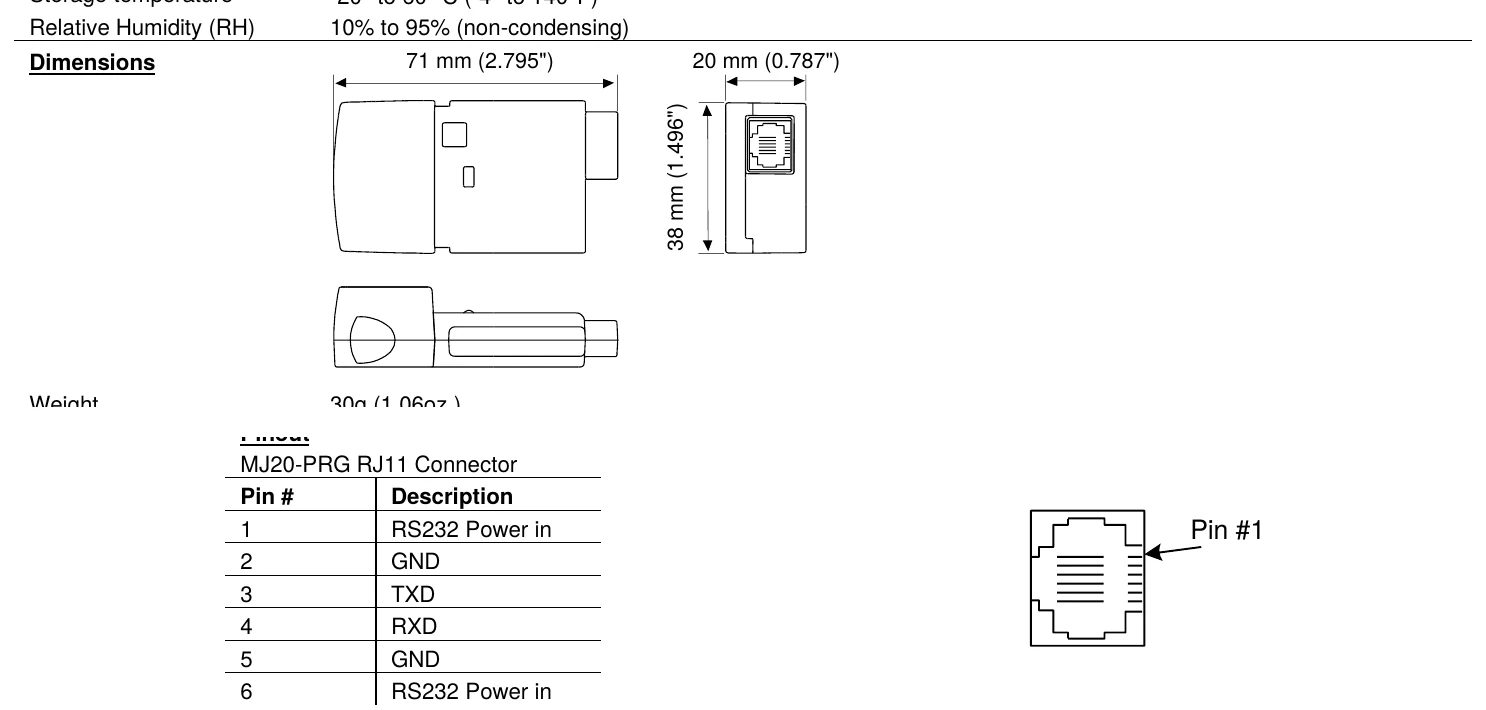

Technical specifications

FamilyJazz & M91
TypeCommunication
FitsJazz (JZ20) – programming and communication
Selected variantJZ-PRG – Programming kit: RS232 module and SubD9 adapter
CommunicationRS232, RS485, Ethernet
Power supplyVia the controller
SoftwareU90 Ladder (free)
All types in Jazz modules and programming (6)
Programming kit: RS232 module and SubD9 adapter
COM port kit, isolated RS232/485
Ethernet module for Jazz
Slide kit (label strips) for Jazz front
Program Cloner – module for copying programs
USB programming cable, 2 m
